Plotting tools

List of Tools

  1. Plotting tool I

  2. Plotting tool II

  3. Multi Data Plotting tool

Plotting tool I

../_images/Plotting1.png

Introduction

This plotting tool is designed to be able to produce publication ready plots of various types of 1D data : SAXS/SANS and WAXS data, any of Irena results, and practically anything which one should display in XY type plot. It can also perform simple fits. The tool creates usual XY plot as default, but can also create few types of 3D plots - Contour plot, Waterfall plot and Gizmo plot. It can also create movies of either 2D plot and 3D plots.

The tool allows creation of plot user styles, which can be applied quickly and reproducibly to numerous sets of data. New data types can be automatically created. Please note, that the formatting is saved ONLY if it is done through my custom made panels designed for this purpose.

The tasks, which can be done:

  1. Load data and plot them, new data types (e.g., Y * X^4) are automatically created if necessary.

  2. Modify data (Multiply Intensity, remove points, subtract background,…)

  3. Do simple fitting (Porod, Guinier,…)

  4. Plot data in 2D Contour plot

  5. Plot data in 3D plots - Waterfall plot (quick but simplistic) or Gizmo plot (slow but powerful)

  6. Create movies of 2D plot or 3D plots.

  7. Create plot user styles, import and export them from current Igor experiment for future use

This tool can also display “results” – size distributions, Unified fits etc.

How to use

Select “Plotting I” from SAS menu.

In the top part are standard data selection tools. This package can also be scripted by scripting tool. Select data in usual way and push button “Add data”. You can add multiple data sets. You cannot have the same data set twice, code will complain and refuse to do so. You can add data anytime later also.

Apply Graph style available in the popup “Graph style” or select the data type to plot on both axes. The needed data are created, if they do not exist.

Use checkboxes and more controls in “Change graph details” (opens new panel with more space) to modify graph as needed.

Example: Selected data and applied included log-log style:

../_images/Plotting2.png

Note few items: In the axes names you need to use Igor formatting for subscripts, superscripts, Greek letters etc.

Setting limits on the axis can be done manually or using function which can be called using zoom function in Igor. Select area of the graph you want to zoom to and right-click. Select “ZoomAndSetLimits” from the menu. This will zoom the graph as well as set limits in this tool.

Scripting

It is possible to script the Plotting tool I to add multiple data sets into the tool without doing it manually:

../_images/Plotting11.png

You can use the scripting tool to either rest Plotting tool and add the files or just add files to existing files already in the plotting tool using one of the two buttons:

../_images/Plotting12.png

The plot of these data (time series of SAXS data) is not very informative in any presentation… Therefore now we have few 3D options…

Contour plot

From version 2.52 this tool can create Contour plot. Load series of data in the tool (best through Scripting tool) and then push button “Contour plot”. Contour plot is created:

../_images/Plotting16.png

Associated controls allow some modifications of the way the data are displayed. Note, there are MANY more option in Igor, these are just the ones I felt are useful for the presentation of data Irena typically presents. If you need more options, let me know what options you need…

Basic options are: Min/Max Contour with number of Contours. Display Labels (numbers on contours showing their values), spread the contours on log scale, choice of colors and smoothing of the contours.

Note, that Contour plot is regular XY plot for Igor, so to change labels, ranges and other properties of this plot can also be done by using standard Igor tools.

Waterfall 3D graph

Using the button “(Re)Graph (3D, Wf)” you can create Waterfall graph. It is fast and kind of very simplistic.

../_images/Plotting13.png

There are some controls at the top which enable small changes to presentation of this graph…

../_images/Plotting14.png

But not that much…

Gizmo 3D graph

Using Gizmo in Igor is much more advanced and this tool is under development starting from version 2.48. More functionality is likely going to be added but it is currently useable.

To start, push button “Gizmo (3D)”, at least 3 data sets are necessary…

../_images/Plotting17.png

To use Gizmo one needs to resample the data to create smooth plane data on grid pattern. Therefore we need to resample q scale. Note that if the main panel has “Log X” selected, log(q) will be used for this tool. Also if the main tool has “Log Y axis” selected, log of Intensity will be used. This may be correct for SAXS data, but not for Size distribution for example. If main tool has these Log choices unselected, straight data will be used.

Note that this calculation may take a lot of time, especially when input data have a lot of points. Therefore there is Estimated Calculation time - which is kind of approximate for my Macbook Pro, your times will vary. But it tells you if it takes short time or lot of time. Better feedback (“get coffee” may be provided in the future.

../_images/Plotting18.png

The button “Create 3D data set and plot” will - as indicated - create the 3D data and plot them. The button “Recreate 3D plot” will use existing data (it exist) to recreate the 3D plot. It will be much faster, but the data may be stale.

Choices of Grid lines and Axes labels = legend are left to user. Note, that the x axis and z axis are taken from the main plot panel while the “data order” legend is in this panel. Color scale is common with Waterfall 3D graph. Other controls may appear in the future.

Since this tool does not know about the main panel, if there are changes to the main panel you need to push button “Sync w/main panel” to update the Gizmo plot

Note, that Gizmo has manytools associated with it in the menu as the controls for it are kind of awkward at this time. Major upgrade is planned for Igor 7.

You can create movies of rotation of the Gizmo plot, control its visual look, etc. More controls is likely to appear in the future, but final version of this tool is likely for Igor 7.

Fitting

../_images/Plotting5.png

Use button “Fitting” to pull up panel with fitting range, checkbox “Use errors” if these are available. Select function to fit. Use cursors to select range of data to fit.

Note, that various number of parameters appears below for starting guesses for parameters. You can try to push button “Guess fit parameters”. This will try to guess starting parameters for fitting, since these are necessary for various fits. It may or may not work well. Good guess is VERY important for least square fitting. Example:

../_images/Plotting6.png

The try to fitting:

Results are printed in graph:

../_images/Plotting7.png

To remove the results from the graph and clean it up, use button “Remove Tags and Fits”.

Remove a data set

To restart the tool and cleanup the data from graph push button “Kill graph, reset”, to remove one data set at a time from the tool, use button “Remove data”.

Creating user style

When you have graph which you like to use many times, click button “Save new graph style”. The new style will be created after user provides name. The name is checked for uniqueness and for name appropriateness, so the new name may be slight modification of the name provided. You can rename the style using “Manage Graph details” button.

NOTE: from version 2.38 I have added predefined common styles (Guinier, Porod, Zimm,…) into the menu. These could have been defined by any user if needed. Note, that at this moment it is difficult to do those linearized fits which call for fitting in log scale (fitting log or ln of Intensity vs log or ln of Q for example) because the tool displays data on log scale when the plot calls for it. That is kind of problem, as in order to use line fitting in Igor I would have to create log or ln of the Intensity (or Q). This is mess logically (display Intensity on log/ln scale or create log/ln of intensity and display on linear scale?). I am trying to Figure out how to do this so it is easy to use for users and logical. I may actually do separate tool for these fits, as adding this into Plotting Tool I seems to make it much more cumbersome to use. User input would be really welcome here!

Import & Export of styles

Use “Manage Graph details” button.

../_images/Plotting3.png

The panel shows two main lists. Left shows user styles available in Igor and right shows styles outside Igor. Buttons under each window allow manipulation with the styles, the buttons “--- Copy - >” or “<- Copy ---“ can be used to copy styles between the Igor experiment and hard drive storage space.

When done, kill the panel.

Modifying the data

Click button “Modify data” and new panel will show up.

../_images/Plotting4.png

Important information:

When this tool is used FIRST time on a data set, it creates a backup copy of the data. Anytime later, this can be recovered. If that is done, ALL changes done to the data will be removed.

Select data to modify, modify using buttons and numbers. For removing data smaller than particular Q or removing just one data point, user rounded cursor (called A in Igor) and for removing data larger than particular Q use cursor B (squared).

Use button Cancel to reset the corrections to default values seen above. Note, that this resets instance of running this tool, to reset data to original data you may have to recover backup of the data…

Note, that the length of the name of wave is limited to 30 characters, including the “q_” etc. at the beginning.

Storing graphs for future use, exporting Figures

../_images/Plotting8.png

To get a control panel controlling the features for storing graph, exporting graph and recalling stored graph, push button on main screen “Store and recall graph”. This pulls up the above control graph.

Controls description:

The two top buttons allow user to save current graph as tiff or jpg files. The dialog for naming them is provided after pushing the button.

To save Igor recreation macro, push the next button. It does not work yet… I need to Figure out how to do this.

Next is name for Irena own recreation macro, which you can store. This macro is in form of string and stored in “root:Packages:StoredGraphs:”.

The advantage of using this macro compared to Igor Pro recreation macros is the fact, that after recovery of graph through this macro the Plotting tool can still control all features. That is not true for Igor recreation macros.

“Store Irena plotting tool graph” button will store the current graph in the above-mentioned place as a string. The strings are listed in the listBox below.

Selected stored graph in the listBox can be either restored – or deleted, using the buttons below.

More…

In version 2.62 I added ability to add linked d-spacing axis to the top of the graph. In the “More…” dialog is place for more useful tools. First tool there is adding TransformAxis to the top of the graph, which displays d-spacing. Note, that this is not very convenient for recreating and so it is removed when you make any change which forces recreating the graph. Keep that in mind, it is bit inconvenient.

Below is the panel and example of result in a graph.

../_images/Plotting9.png
../_images/Plotting10.png

Movie making

To present time series of data from version 2.48 this tool can create movies. Use button “Create movie” and ne panel is created:

../_images/Plotting15.png

You can create sequence of 2D graphs or 3D graphs, in 2d graphs you can either add the data in between the frames or replace the data in between the frames. Few other controls allow you to control how the movie is going to look like. The 3D graph here is the Waterfall graph described above, Gizmo has its own movie creation tool provided by Wavemetrics.


Plotting tool II

This is modification of plotting tool developed by Dale Schaefer. This tool control ANY top graph. It can, therefore, be used more flexibly – but has some limitations… This tool is deprecated and should not be used.

../_images/Plotting19.png

The GUI contains selected controls and any change in this GUI is applied to the top graph. Note, that compared to Plotting tool I, which at each modification reapplies all formatting to the graph it controls, this tool applies only the control which has been changed. Therefore, this tool is basically ONLY different GUI to Igor controls – combined with convenient Irena data selection tools.


Multi-Sample Plotting tool

This is tool developed to be able to plot many Irena/Indra/Nika data types quickly and easily. Many plots can be created quickly, with lots of data included in each graph. Also, controls can be individually applied to any graph. The tool can plot X-Y (optionally error) such as data (Q/Int/Err) or results (Size distribution, PDDF,…), but also different SAXS linearization plots - Guinier, Kratky, Porod and few others used mostly in bioSAXS.

../_images/MultiDataPlot1.jpg

Data Selection

Understanding data selection tools makes user life easier. In the Data selection part of the panel you need to define sufficiently the data you want to look inside. There is detailed description on how to use this widget system Multi Data selection. Please refer to that page for details.

Left side of the panel is Data selection. This Data selection set of widgets is common to many tools now, so it is important to understand it well…

Data type Irena recognizes few data types.

  • USAXS data type = this is naming system for data generated by APS USAXS instrument. Ignore, unless you have data from this instrument. If you have our data, you should know enough to use this.

  • QRS data type = this is the default data naming system for SAXS/WAXS data in Irena and Nika. For details see here QRS data type.

  • Irena results = any fit and modeling results generated by Irena. Most tools will save some type of data - size distribution, fits, pddf, diffraction peaks,… All of these data types can be seen as “Irena results”

  • Any = if all checkboxes are unchecked, user can define Regular expressing, which will tell irena which wave is x, y, and optionally error. Keep in mind, that the first wave matching the regular expression will be picked. This may require some testing or help from me, if you want to use it.

Start Fldr. Here you can select at which location in data tree code will start looking for the data. Pick suitable place, for example root:SAXS may be a good start. Picking suitable start where to look for data makes the code run faster.

Folder Match (RegEx) this allows users to look for only some of the folders. A short summary on regular expressions is at the bottom of the page, below the Listbox with folder. Google it, understanding regular expressions will be very helpful.

Invert? this checkbox inverts the Regular expression meaning. So if you insert in the “Folder Match” field string 00034, only data which have in name 00034 will show. If you check this checkbox, selection is inverted and all files which do NOT contain this string in the name will show.

Sort Folders This sorts the folders using one of many methods implemented. As result, this will group folders in order which may be helpful for processing. For example, some tools create list of results in the order the samples were processed. Having proper order helps plotting results after the analysis properly.

HOW TO USE Pick a good starting folder. If you select root:SAXS: folder, it will list all data inside this one folder inside their subfolders, if any. If I have 7 folders inside this folder, each with 45 measurements for each sample, I will see 7*45. That is a lot of names to deal with. But if I choose for example root:SAXS:Sbuf1_00033: as starting folder, only 45 data sets which I want to see will be shown.

Learn to use the “Folder Match” and Sorting folders, it helps a lot!

Graph controls

This tool can control any graph. Note, that for some graphs these controls may not be appropriate. It is critical to understand, how the graph which is being used is controlled. First, few details about Igor graph terminology. User can see the terms listed below by selecting the graph and hitting ctrl/cmd-Y which opens Igor own Window Control panel.

Every Graph has Graph Window name - this is Igor name used to address it. Typically user does not see this name but it is critically important, since it is unique name for the graph. It also must be proper Igor name - single word, starting with letter. In this tool this is displayed in red in the right top part of the panel - in the next part we will call this controlled graph. See image. If the graph was created by this tool, the name will be “MultiDataPlot_XYZ”, where XYZ is number starting from 0 and selected to make the name unique.

../_images/MultiDataPlot2.jpg

Next is Graph Title which is user changeable string. This string is present by this tool to something meaningful (if possible) and user can change it. This is any string, spaces, characters, numbers, symbols… This is what is seen by user in the top bar of each graph. Make is sensible and understandable.

If user wants to change to which the tool writes, user can change the Graph Windows name (red) selection by using Select Graph pulldown menu. This menu offers selection of graphs available (see figure). First choice is always top graph, which can be any graph created by anyone. Next are other graphs created by THIS TOOL ONLY. This is to prevent users from having to deal with lots of Irena work graphs etc. If you want this tool to control graph which was not created by this tool, make it first top graph, then select it through this menu as top graph and you can add data, change the title, apply formatting etc.

../_images/MultiDataPlot3.jpg

New graph button creates a new graph. Note, that adding data into graph “none” in the Graph window name will also create a new graph.

Adding data

One data set can be added to graph by double clicking on the name. Note, that any data set can be in a graph only once, so if you try to add it second time, code will do nothing.

NOTE: Appending data by double click to graph does not apply formatting.

Append to selected graph button adds all selected data in the listbox to target graph.

NOTE: Appending data to graph by button DOES apply formatting.

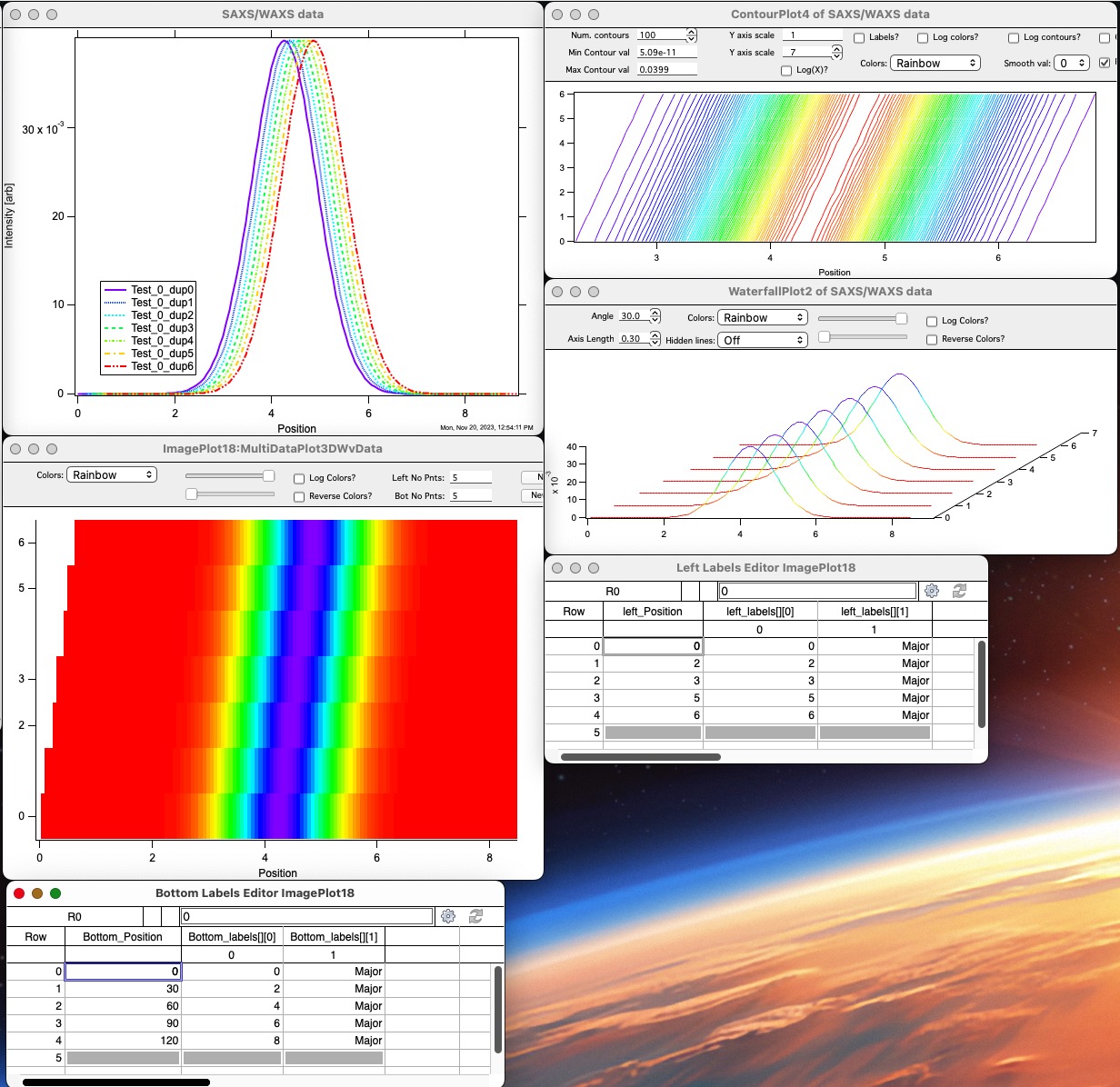

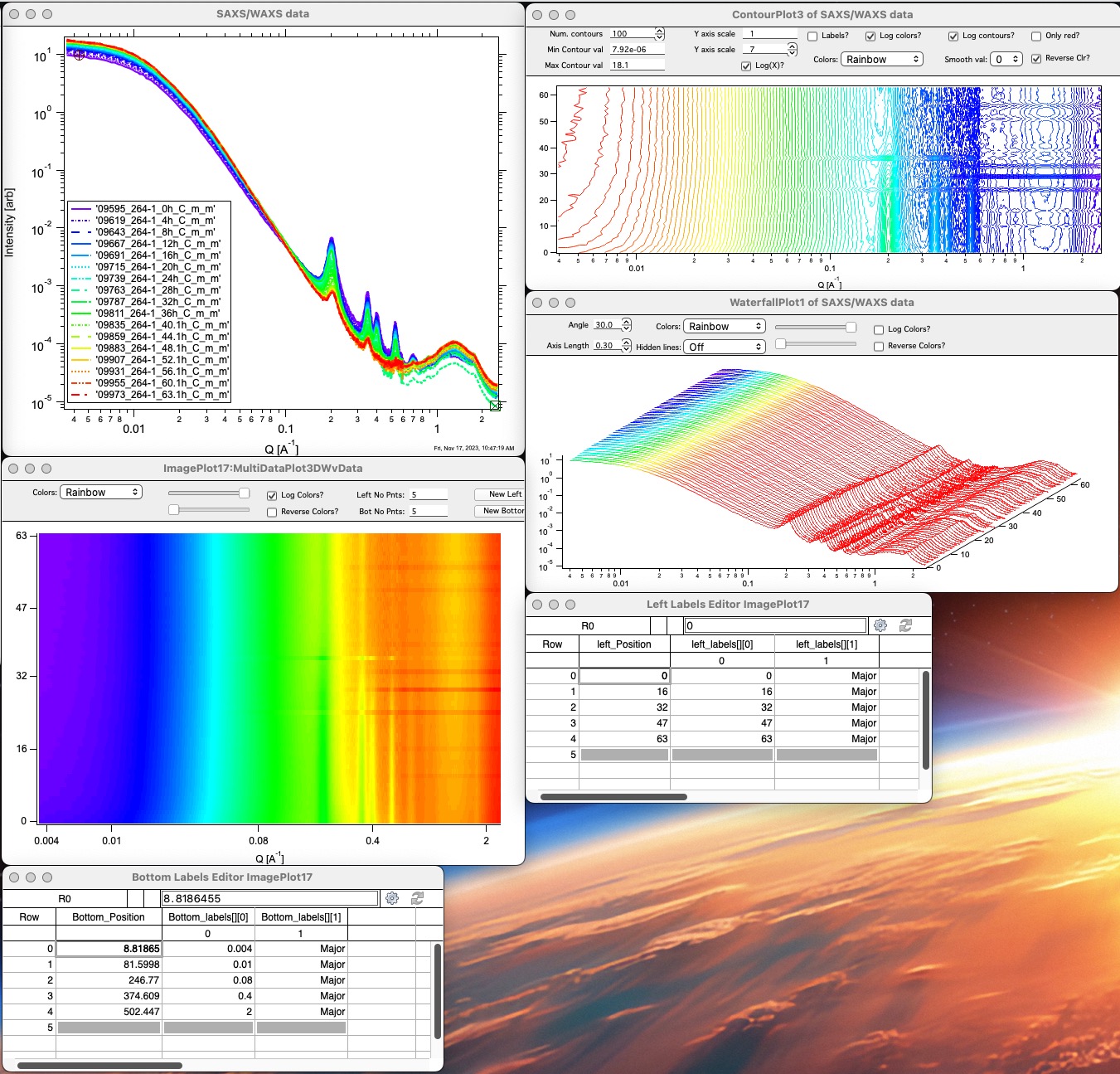

Formatting graphs

There are two ways to apply formatting to a graph.

There are predefined types of data to plot, X-Y, Guinier, Kratky etc. If needed, this tool will create necessary data. This sets also options on the panel and applies the choices to the controlled graph. Note, this can seriously change the graph you are looking at. Make a new graph if you do not want to change data displayed in the controlled graph…

Individual controls presented on the panel, such as legends, log scaling, offsets etc. These are individually applied to the controlled graph. These controls may be added as users need more, at this time there are basic control for axis, traces, and legends.

Apply Style will apply predefined styles, such as log-log, lin-lin, Volume Size distribution, etc. This does not change data, it simply changes setting for axis, labels, etc.

Apply all formatting button will apply all selected formatting to the controlled graph.

Apply Formatting automatically checkbox will force the tool to apply formatting automatically when a data set is added to a graph. This is shortcut to reduce number of buttons user need to push.

Export as jpg will save the controlled graph as jpeg file for user.

Export as tiff will save controlled graph as high resolution tiff file.

Export as pxp will save controlled graph as Igor experiment. This is very convenient way to store copy of the graph - with all formatting and data for future use as it becomes individual experiment which one cannot change accidentally. I strongly suggest saving individual Igor experiments for each graph used in paper etc.
